Tuesday, November 24, 2009

Trailer repairs and Batboat rebuild is on coming.

Several have emailed wondering if the Batboat rebuild is still oncoming so here is a small update.

UPS delivered the stainless steel safety chains a while back, I bought the new trailer coupler over the weekend and got one of the three through-bolts today in hope to have the coupler bolted on the trailer by early December.

Depending on the weather and finding free time, the cleaning and painting of the new coupler will take a few days to finish.

After the trailer is fixed, the current plan is to go to Michigan Lumber in Flint for the plywood to make the fins and laser eyes. They sell the finer quality Douglas Fir plywood there and it is stored on flat shelves, not on forks like the warped plywood is at all big box retailers here.

First, mock-ups and patterns of the new Batboat details will be made of some type of low cost fiberboard. It all depends on how much funds I have and the weather.

These large 4' by 8' sheets of board will be hauled home in the Batboat; the most important reason to fix the trailer first. Stay tuned.

Thursday, November 12, 2009

Batboat Rebuild: trailer and fiberglass cloth, November 11, 2009

Those following this blog know there are problems with the Batboat's trailer. I now suspect that at one point it was in a fender bender evidenced by the bent coupler and several small twists and dents in the frame.

Its getting too cold to do fiberglassing and woodwork outside so I will put the focus on making the trailer safe. It WILL be boring to most of you but I hope that those who are working on their own Batboat will find time saving information here.

On this day I took off the coupler and safety chains. The work lasted less than an hour.

The old chains were zinc plated and mostly rusted plus I never trusted their hook connectors. A new set enroute from iboats.com are made of stainless steel and have better connectors.

Above is the coupler. It connects to the car's trailer hitch. The yellow lines represent the correct level position of the trailer. As you can see this thing is bent out of wack!

It was welded to the tongue (the forward beam tip of the trailer) in three spots and I freed it off with the grinder and a hand vice clamp.

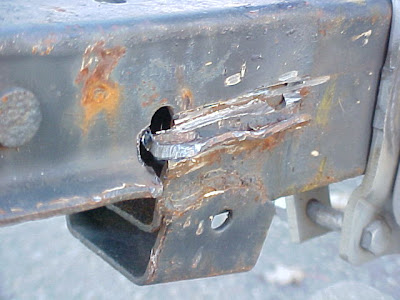

Two spots were cut through...

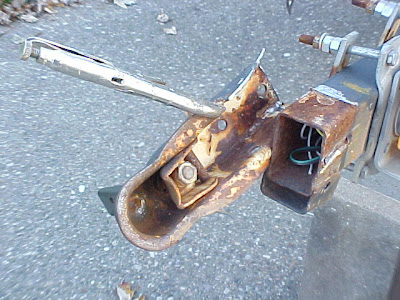

... and the coupler was bent and twisted off.

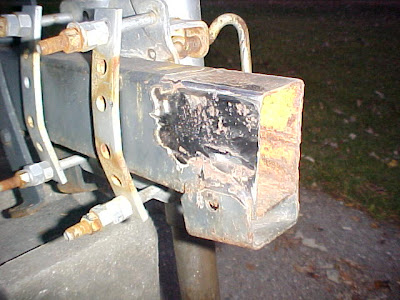

The rest of the attached coupler and welding was smoothed out with a grinder flapper disc. I wacked the beam back into shape with a hammer and coated the bare metal with spray primer to help prevent rust.

I'll get a new coupler after the chains get here.

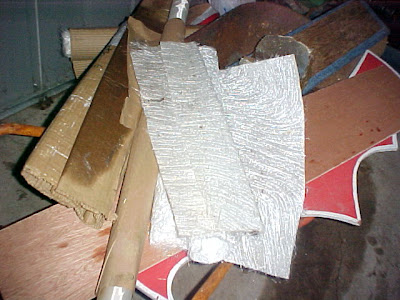

Sundown was arriving meaning it was time to cut the lawn before it became too dark. When I opened the shed there was a nice surprise waiting for me. The rolls of remaining 1.5 Chopped Strand Mat and 6 oz Hexel fiberglass cloth fell from where they were shelved, unrolled on the floor and absorbed at least a month's worth of rain water, mud and all were well spotted with mildew! Totally ruined!

I kept these rolls and all of the scraps for nothing. About 2 yards combined of uncut cloth and a bunch of odd pieces were worthless. Oh well, at least the really expensive stuff, the 1708 biaxial, seemed okay. I'll check for mildew tomorrow! (checked it and it's fine but moved to the dry basement now.)

Can't use this for fiberglassing because the dirt and mold will promote rot! >:(

Wednesday, November 11, 2009

Batboat Rebuild: Day 50 November 8, 2009

On this day I started refurbishing the Batboat's trailer turn signals. The wiring was a twisted mess and the lights stopped working while I was using the Batboat to move my things from the old house. Had to leave it parked until I found time to fix them.

Later, somehow the plug got squashed while the boat was in the drive way!

The trailer lights had two sets of cables spliced together at the end with crimps and electrical tape, each with their own plug. It all had to go.

As you can see over time this became a tangled mess hanging under the trailer with too much length.

Ripped it all out but I kept the lights, which were perfectly reusable.

A new set of lights was something over $35. To save a few bucks I rebuilt them. The lights would be rewired with this new harness I found at WalMart for $12+.

There was trouble running the wires through the trailer's main beam. Wouldn't go in more than a few feet before getting stuck. Looking round the yard I found a simple solution. Take a garden hose and run it through the beam out to the other side, stick the wires into the hose a few inches, wrap them together with tape, and pull the house back out; A quick way to thread wires through a hollow beam.

It was getting dark and I continued two days later by taking apart and rewiring the signals.

I got the lights into the house and worked on them with the soldering iron for a few minutes, put them back on the trailer, connected the harness ends, put in new bulbs, and they worked perfectly.



I never did anything like this before and probably spent two hours over the two evenings reverse engineering and working on it. They are now as good as new and I had lots of fun.



The next job is to replace the trailer coupler. It is bent all to heck! I could never back the Batboat into the water without it veering in strange angles.

Wednesday, November 4, 2009

Batboat Rebuild: Seat Mystery Solved Part 2

The 1966 Glastron fiberglass boat catalog that I mentioned here three weeks ago came in the mail a while back. (I paid $13.89 for mine and another recently sold for $26, he he he.)

The pointed seat design shown in a '66 Jetflite V-143 Super Sport appears, from the back, to be a closer match for the ones used in the original Batboat than the '67 Jetflite V-143 mentioned in another blog post.

'66 Jetflite V-143 Super Sport

1966 Batboat

'67 Jetflite V-143 Super Sport

It looks like when it comes to having my own seats made I'll need to get hold of one of those and interpolate the dimensions of the Batboat's to base a new pattern on.

The Jetflites are the only boats built by Glastron with those pointed, turned up seating and are unique to that model.

Catalogs show Jetflite hulls had the seat bases molded into the deck from 1965 to 1970. From '66 to 69 pointed seats were used but not in 1970. The model was discontinued 1971.

The Batboat's seats were specially made and upholstered in glitter blue vinyl, as shown above. This is one of the scant close up glimpses of the original seat. It doesn't get much better than this, sadly.

The 1966 Jetflite V-143 Super Sport

The '66 catalog also shows the same type of metallic blue steering wheel used in the original Batboat.

As a side note, the model Glastron based the Batboat on is on the '66 catalog cover; Dark Jade Crestflite Stern Drive V-174 Super Sport. According to the back page specifications, it was only available as Dark Jade and White in 1966 but the photos show blue, also shown below.
